| Maximum power supply | 300 Vac |
| Maximum current intensity | 3 A |
| Maximum dissipated power | 2 Watt |
| Rated frequency | 50 / 60 Hz |
| Maximum rotation speed | 800 rev./min. |
| Cable entry | Nr. 1 M20x1,5 - Nr. 1 M25x1,5 - Nr. 1 ½ NPT (cable glands not supplied) |
| Utilisation category | AC 15 | |
| Rated operational voltage | 250 Vac | |
| Rated operational current | 3 A | |
| Rated thermal current | 10 A | |
| Rated insulation voltage | 300 Vac | |
| Mechanical life | 1x106 operations | |
| Connections | 6.3 mm Faston taps | |
| Wires | 2x0.5 mm² , 2x1.5 mm² , 1x2,5 mm² | |
| Tightening torque | 0.5 Nm | |
| Microswitch type | Single break, snap actions | |
| Contacts |
1 NO+1NC change-over contacts
(All NC contacts are of the positive opening operation type  )
|
|
| Scheme |
|
|
|
Weight with feet ( Kg ) Weight with flange and feet ( Kg ) |
4,6 5,2 |
|
Feet Mounting

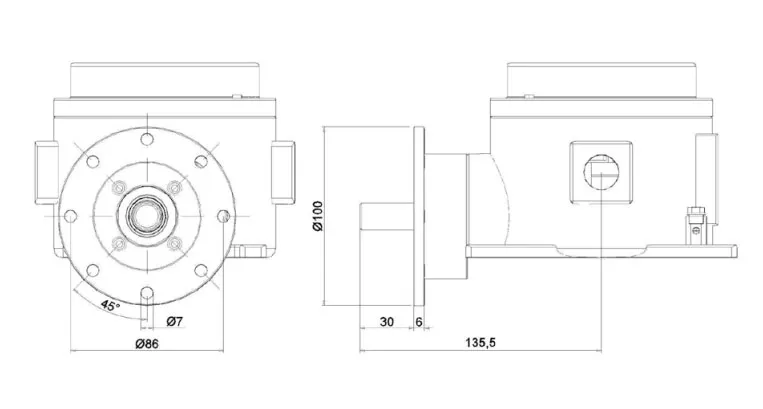

Flange And Feet Mounting
