Rated load (RL)	PRN 500 ÷ 4000 kg; PRX 5000 ÷ 100.000 kg
Combined error	< ±0.1 % RO
Repeatability	< ±0.02 % RO
Creep (20 minutes)	±0.03 % RO
Safe overload	150 % RL
Ultimate overload	300 % RL
Material	Stainless steel
Degree of protection	IP65
Deflection	0.4 mm
Compensated Temperature	-10 ÷ +50°C
Temperature range	-20 ÷ +70°C
Temperature effect on zero balance	< ±0.005 % RO/°C
Temperature effect on output	< ±0.005 % RO/°C
Rated output RO	1 mV/V ±0.1 %
Zero balance	< ±2 % RO
Insulation resistance	> 5000 MOhm
Input resistance	700 ±20 Ohm
Output resistance	700 ±10 Ohm
Recommended input	5 ÷ 15 Vdc/ac

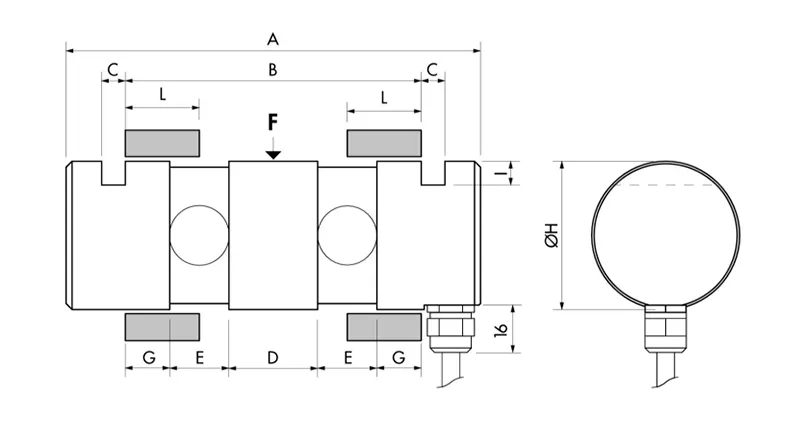

MODEL	RATED LOAD (KG)	A	B	C	D	E	G	ØH	I
PRX (ex PRN)	500 - 4.000	116	80	6	20	20	10	30	6
PRX	5.000 - 20.000	140	100	8	30	20	15	50	8
PRX	30.000 - 60.00	290	220	20	100	30	30	80	15
PRX	80.000 - 100.000	305	235	20	115	30	30	100	15

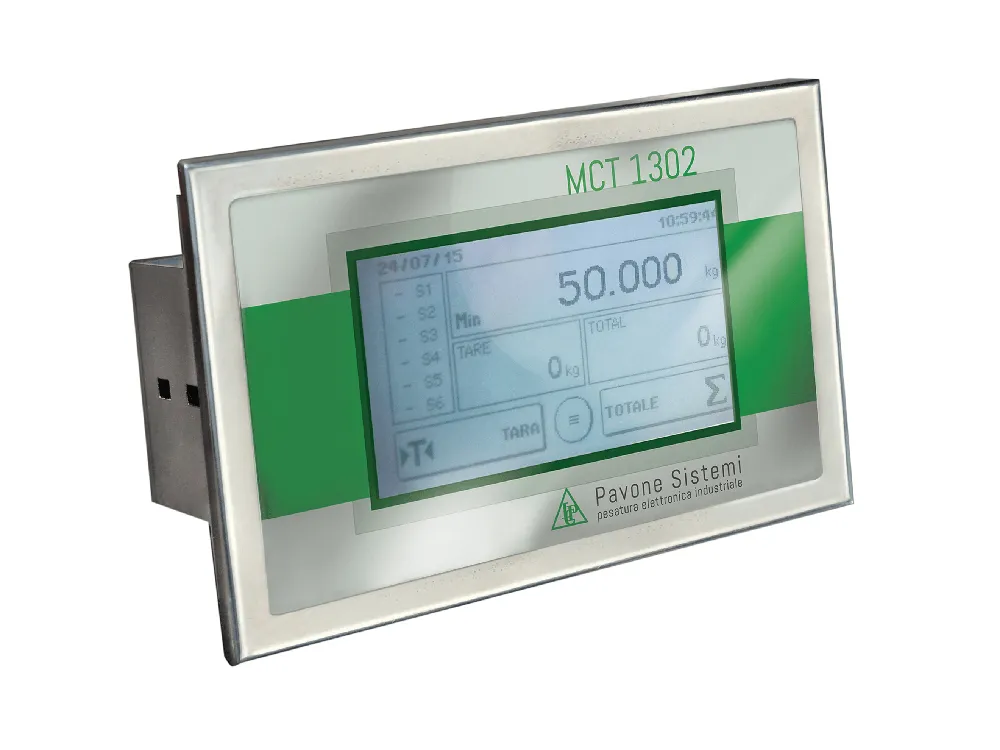

The MCT 1302 touch screen weight indicator is ideal for all types of weighing, in particular for static weighing and loading / unloading and multi-component dosing. It is easy to install and use and can be customized as needed. MCT 1302 has a multilingual menu, a touch screen keyboard, removable screw terminal blocks (3.81mm pitch), internal data memory of 64 Kbytes expandable up to 1024 Kbytes and simultaneous availability of Fieldbus and analogue output. The Software Optimation is given for free. This Software allows you to run certain activities such as calibration or monitoring directly from your computer. The Optimation software is provided by Pavone Systems and guarantees a perfect instrument run.

Legal for Trade	certification available on request
Measuring range	-3.9 ÷ +3.9 mV/V
Input sensitivity	0.02 µV/count
Full scale non-Linearity	<0.01 % full scale
Gain drift	< 0.001% FS/°C
Display	graphic LCD (240x128 pixel)
A/D Converter	24 bit; internal resolution up to 16.000.000
Trasducer input voltage	5 Vdc (max 8 cells -350 Ohm)
Frequency signal acquisition	12 ÷ 1000 Hz
Visible resolution (in divisions)	999999
Divisions value (adjustable)	x1, x2, x5, x10, x20, x50; max 4 decimals
Temperature range	-10 ÷ + 50°C (humidity max 85% no condensation)
Storage temperature	-20 ÷ +70°C
Filter	0.1 ÷ 250 Hz

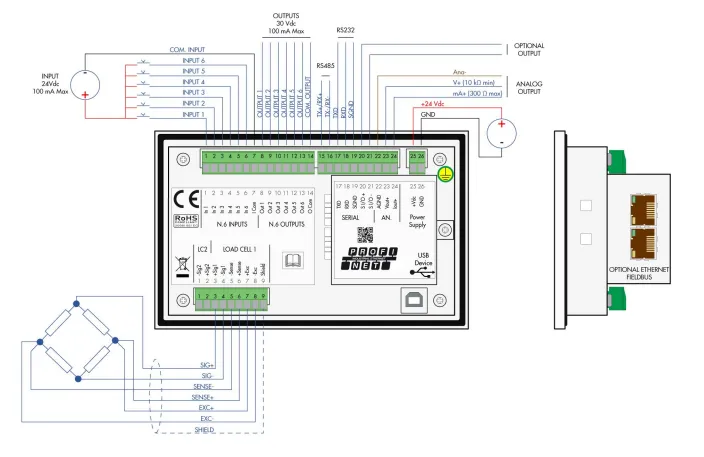

Logic output	6 opto-isolated; max 24 Vdc/100mA each
Logic inputs	6 optically isolated 24 Vdc PNP (external power supply)
Additional I/O	up to 4 external modules with 4 in/8-out each (16 in/32 out, total) by independent RS485
Serial port	1 USB device + 1 RS232C + 1 RS485/Fieldbus
Power supply	18 ÷ 30 Vdc - Power consumption 5 W
Microcontroller	ARM Cortex M0 + 32 bit 256KB Flash reprogrammable onboard from USB
Data storage	64 Kbytes expandable up to 1024 Kbytes
Regulatory compliance	EN61000-6-2, EN61000-6-3 for EMC; EN61010-1 for Electrical Safety, EN45501 for metrology

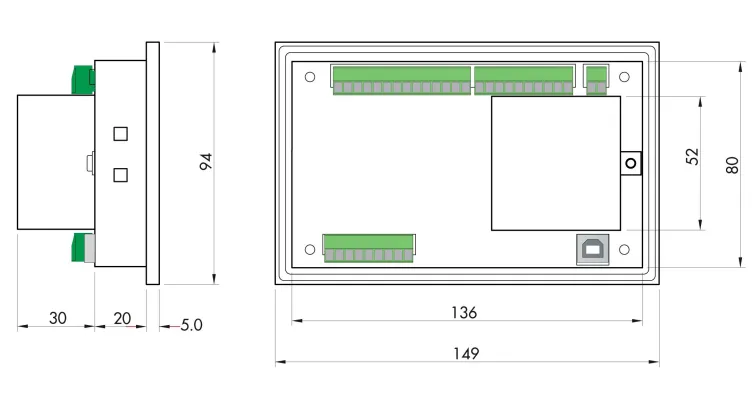

Drilling template	138 x 82 mm (L x H)
Dimensions	150x95x26mm (LxWxH) including terminal blocks; 150x95x56mm (WxHxD) with fieldbus options
Fieldbus	Ethernet 10/100 con protocolli TCP, MODUBUS/TCP, UDP, IP, ICMP, ARP; Profinet; Ethernet/IP; Ethercat
