Engineering Towline

Add to cart to request a quote without signing in

SCS code:

017.045.005

Price:

Please login/register to see price

Model:

Power chain E4.42.10.150.0

Power chain E4.42.20.150.0

Signal drag chain E4.42.10.150.0

Signal drag chain E4.42.20.150.0

Power chain E4.56.20.200.0

Quantity:

ADD TO CART

inquiry@clescrane.com

CONSULTING ONLINE

INTRODUCTION

Overview

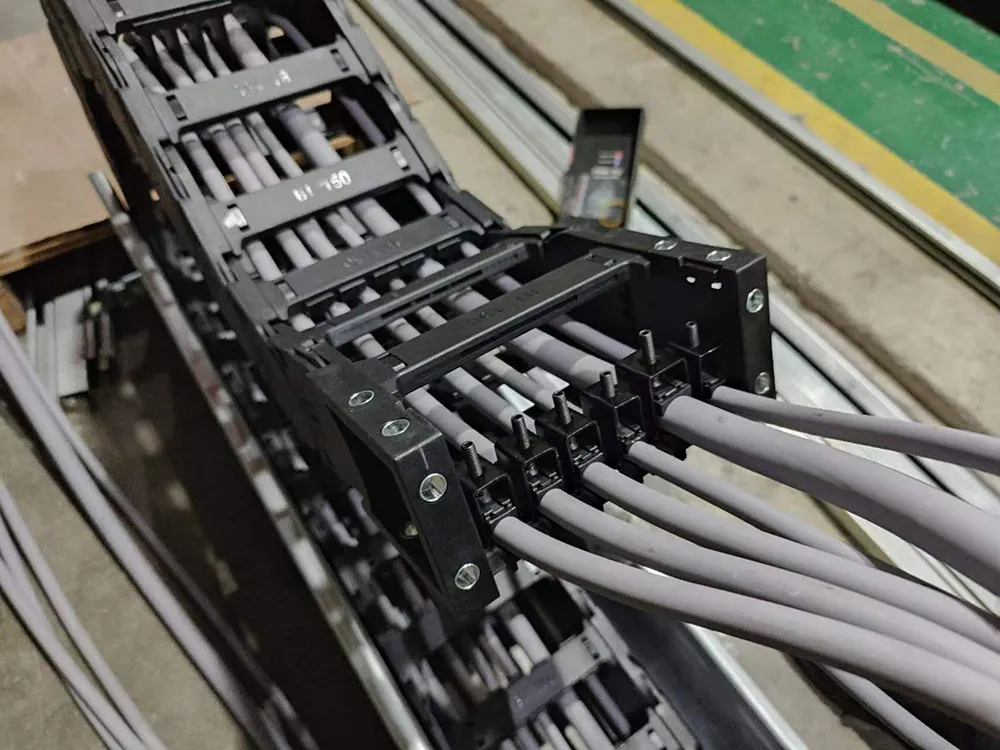

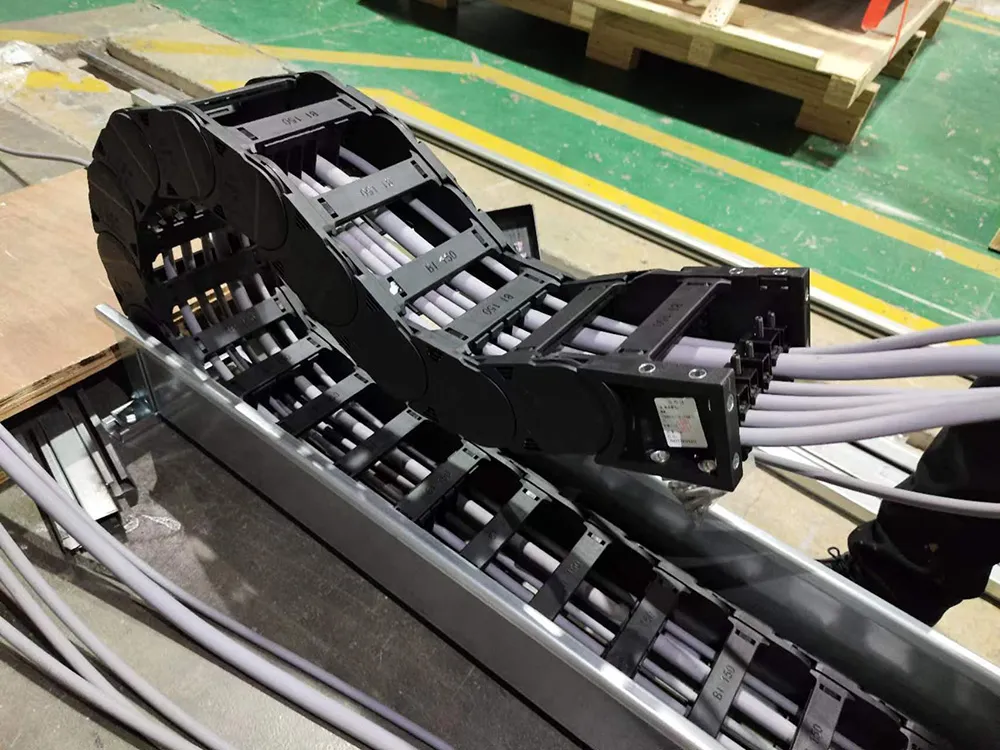

E4.42 series energy chains | robust, energy chain with crossbars every link, openable from both sides.

- Straight run through inner/outer-link design
- Quiet operation through integrated brake on the radial stop-dogs
- Very high stability due to the undercut design
- 15% more tensile strength (compared to the best old E4 series), extended unsupported length through improved stop-dog system and vertical radial stops
- Optionally with smart plastics - i.Sense EC.W for real-time condition monitoring and service life status display

Series E4.42 is suitable for the following types of applications

Vertical: Hanging applications ≤ 100m, standing applications ≤ 6m
Horizontal: Unsupported applications ≤ 4m, Gliding applications ≤ 300m
Circular movement: Rotating application possible, if necessary, with rework (mechanical rework is always required from 180° angle of rotation)

Technical Data

Dimensions

Travel	10.000 mm
Chain's inner height [hi]	42,00 mm
Chain outer height [ha]	64,00 mm
Chain's inner width[Bi]	100,00 mm
Chain's outer width [Ba]	124,00 mm
Bend radius[BR]	150 mm
Trough height [HRa]	144,00 mm
Trough outer width [BRa]	154,00 mm
C rail length[B]	250,00 mm
C rail height	18,00 mm
Guide trough height [A]	162,00 mm
Complete system height [C]	392,50 mm

Parts list

Chain link	89 x E4.42.10.150.0
Mounting brackets	1 x E4.420.10.1.12.C.A2
Separators	180 x 42.1.1
Strain relief elements	4 x 3050.ZC.A
Guide trough without glide bar	2 x 973.30.SL
Guide trough with glide bar	3 x 973.31.SLH
Installation sets	7 x 960.40.250
Fixed end module	1 x 973.80.5
Screwdriver	1 x MAT0050145
smart plastics	Without

1 complete set consists of

energy chain of E4.42 series
+ mounting brackets
+ guide trough with glide bar
+ guide trough without glide bar
+ screwdriver
+ separators
+ strain reliefs

* marked products are optional:
+ real-time condition monitoring with smart plastics - i.Sense EC.W

Warranty Period

Warranty Period: 1 Year
