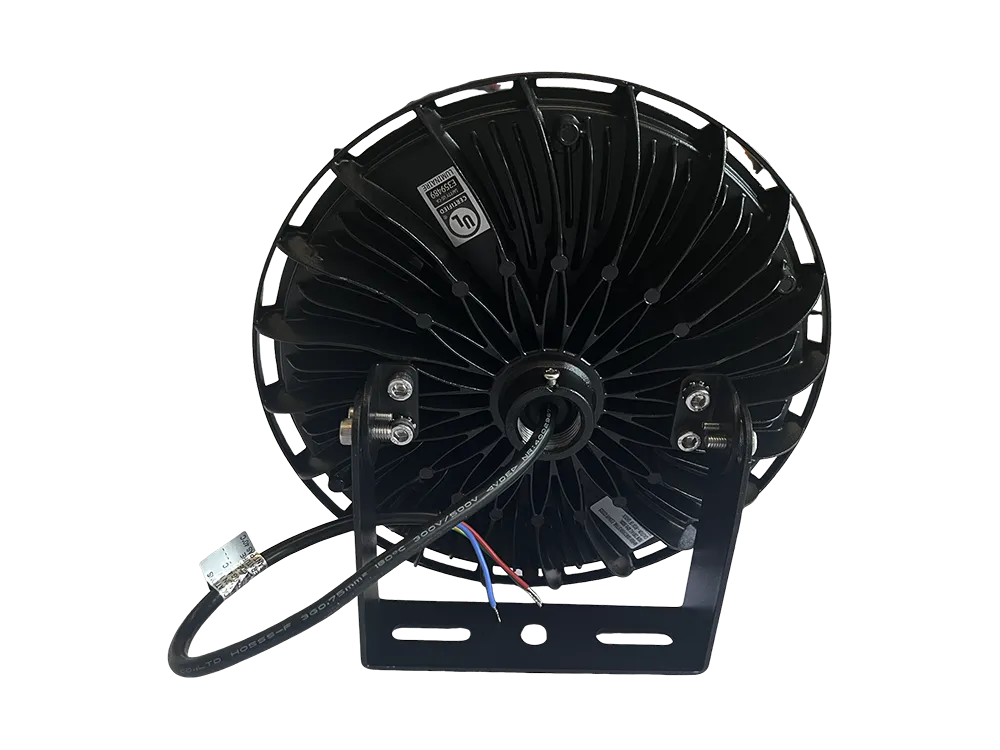

● Casting thermally conducts LED heat to optimize performance and long life.
● With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment.
● Light engines are available in standard 3000K, 4000K, 5000K( 80 CRI) configurations.
● Scalable Lumen Packages from 6,300 to 17,100 Lumens.
● Anti-UV prismatic translucent len is designed to shape the light uniformity and controls the glare light.
● Universal 120V or 230V/240VAC input voltage.
● PF >90%, THD <20%.
● Operating Temperature Range: -40°C to 40°C (-40˚F - + 104˚F).

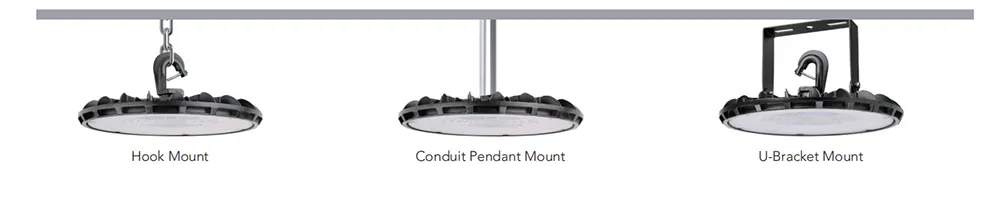

● Hook Mount.
● Conduit Pendant Mount.
● U-Bracket Mount.
● UL cUL wet location listed.
● Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C) specifications subject to change without notice.

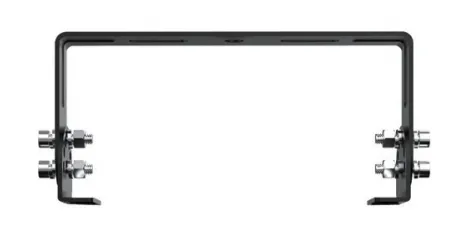

U-Bracket
Use for surface mount
|
SYSTEM WATTS
|
PHOTOMETRY
|
3000K (80CRI)
|
4000K (80CRI)
|
5000K (80CRI)
|
|
LUMENS
|
LPW
|
LUMENS
|
LPW
|
LUMENS
|
LPW
|
|
60W
|
High Bay
|
6300lm
|
105 lm/W
|
6400lm
|
107 lm/W
|
6400lm
|
107 lm/W
|
|
80W
|
High Bay
|
8400lm
|
105 lm/W
|
8500lm
|
106 lm/W
|
8500lm
|
106 lm/W
|
|
100W
|
High Bay
|
10500lm
|
105 lm/W
|
11000lm
|
110 lm/W
|
11000lm
|
110 lm/W
|
|
120W
|
High Bay
|
12600lm
|
105 lm/W
|
13000lm
|
108 lm/W
|
13000lm
|
108 lm/W
|
|
155W
|
High Bay
|
16300lm
|
105 lm/W
|
17400lm
|
112 lm/W
|
17400lm
|
112 lm/W
|
