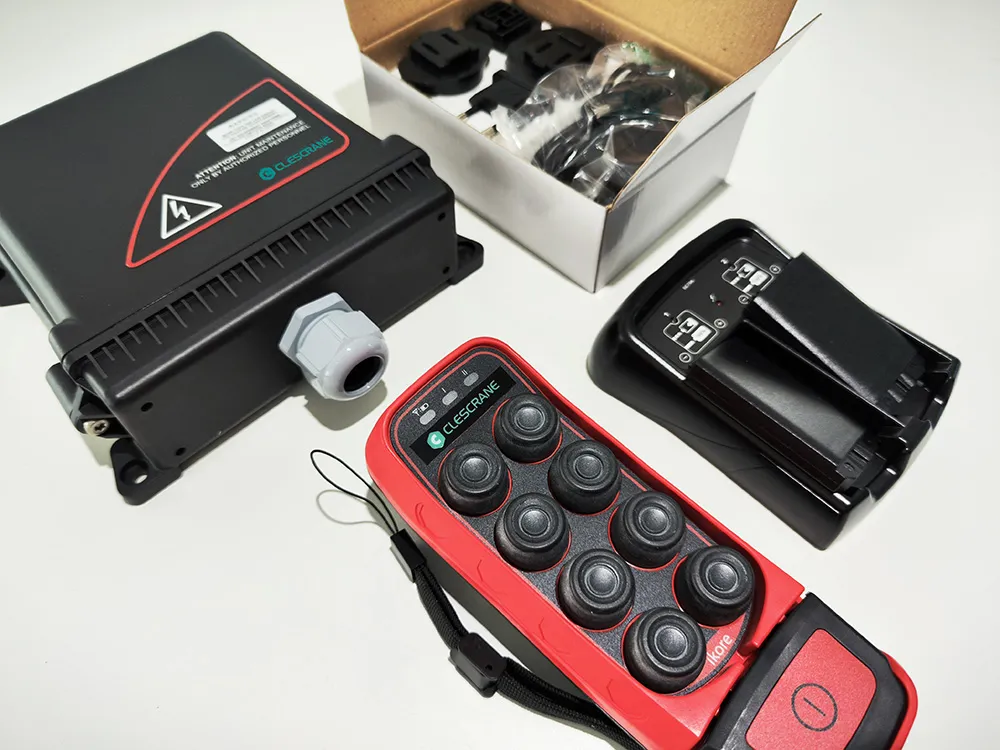

| Transmitter | Ikore |
| Stop function | Cat. 3 - PLe. EN12849-1 and SIL 3 IEC 61508 / IEC 62061 |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | 2405MHz to 2475MHz 20dBm/100mW |
| Main mechanisms (max. #) | Pushbutton (7) + START + STOP |
| Removable EEPROM | External |
| Battery model | 4 AAA (Ikore) / BT11K (IkoreB) |
| Battery life | >80 hours / 8 hours (100% duty cycle) |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 315 grams |
| Dimensions LxWxH mm | 174.5x68x56 |
| Harness | Hand strap/shoulder strap |
| Display | N/A |
| Cable connection | N/A |
| Range limiter | N/A |
| Associated receivers | R11 |
